- BitBox02 vs Nano Gen5

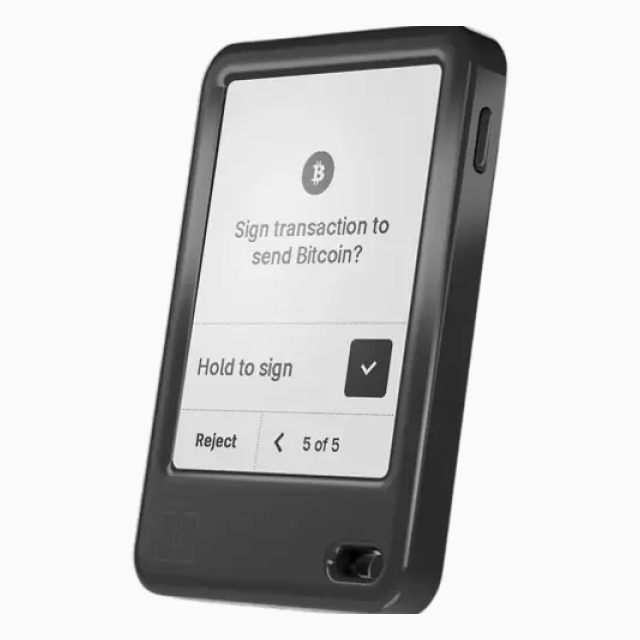

BitBox BitBox02 vs Ledger Nano Gen5
What BitBox02 does better (10) and where Nano Gen5 wins (9) — every spec side by side.
Why is BitBox02 better than Nano Gen5?
- Open-source firmwareYes · Nano Gen5: No
- Reproducible buildsYes · Nano Gen5: No
- Anti-klepto (anti-exfil) signingYes · Nano Gen5: No
- Source code availableYes · Nano Gen5: No
- Weight12 g vs 46 g3.8×
- Bitcoin-only firmware / editionYes · Nano Gen5: No
- BIP85 child seedsYes · Nano Gen5: No
- microSD backupYes · Nano Gen5: No
- User-added entropy (dice)Yes · Nano Gen5: No
- Silent PaymentsYes · Nano Gen5: No
Why is Nano Gen5 better than BitBox02?
- Screen size1.38″ vs 2.8″2×
- TouchscreenNo · BitBox02: Yes
- Duress PIN / decoy walletNo · BitBox02: Yes
- NFC backup cardNo · BitBox02: Yes
- BluetoothNo · BitBox02: Yes
- NFCNo · BitBox02: Yes
- Built-in batteryNo · BitBox02: Yes
- Compatible third-party wallets10 vs 11+10%
- Thickness9.6 mm vs 8.6 mm+12%
Specifications
Side by side
| Security | ||
| Secure Element chip | Yes | Yes |
| Secure Element certification | — | EAL6+ |
| Air-gapped signing | No | No |
| 100% air-gapped | No | No |
| Supply-chain & tamper protection | Yes | Yes |
| Secure boot | Yes | — |
| Anti-klepto (anti-exfil) signing | Yes | No |
| Firmware & open source | ||
| Open-source firmware | Yes | No |
| Source code available | Yes | No |
| Reproducible builds | Yes | No |
| Firmware licence | Apache 2.0 | Limited Use |
| Upgradable firmware | Yes | Yes |
| Firmware update via | USB | USB |
| Bitcoin-only firmware / edition | Yes | No |
| Device lock | ||
| PIN lock | Yes | Yes |
| PIN entered on the device | Yes | Yes |
| Fingerprint unlock | No | No |
| Duress PIN / decoy wallet | No | Yes |
| Brick / wipe PIN | No | No |
| Wipe after failed attempts | Yes | Yes |
| Time-delayed unlock | No | No |
| Anti-phishing words | No | No |
| Keys & backup | ||
| BIP39 passphrase | Yes | Yes |
| Shamir backup (SLIP-39) | No | No |
| Seed XOR | No | No |
| BIP85 child seeds | Yes | No |
| 24-word seed | Yes | Yes |
| SeedQR backup | No | No |
| microSD backup | Yes | No |
| NFC backup card | No | Yes |
| User-added entropy (dice) | Yes | No |
| Stateless use (no stored keys) | Yes | No |
| Multiple seeds on one device | No | No |
| Bitcoin features | ||
| Multisig | Yes | Yes |
| Taproot | Yes | Yes |
| Miniscript | Yes | Yes |
| Message signing | Yes | Yes |
| Coin control | Yes | Yes |
| Own node connection | Yes | Yes |
| Tor support | Yes | Yes |
| Replace-by-fee | Yes | Yes |
| Silent Payments | Yes | No |
| Spending limits | No | No |
| Testnet | Yes | Yes |
| Supported assets | ||
| Altcoins & tokens | Yes | Yes |
| Bitcoin only | No | No |
| Connectivity | ||
| Signing connectivity | USB-C | USB-C, Bluetooth, NFC |
| USB | Yes | Yes |
| USB-C | Yes | Yes |
| Bluetooth | No | Yes |
| NFC | No | Yes |
| QR code camera | No | No |
| Animated QR (UR) | No | No |
| microSD signing | No | No |
| Screen & input | ||
| Screen | Yes | Yes |
| Screen size | 1.38″ | 2.8″ |
| Screen type | OLED | E-Ink |
| Screen resolution | 128 × 64 | 300 × 400 |
| Touchscreen | No | Yes |
| Colour screen | No | No |
| Gorilla Glass | No | No |
| Controls | Buttons | Touch Screen |
| QWERTY keyboard | No | — |
| Battery & power | ||
| Built-in battery | No | Yes |
| Battery capacity | — | 200 mAh |
| Removable battery | — | No |
| Wireless charging | No | No |
| Design | ||
| Weight | 12 g | 46 g |
| Length | 54.5 mm | 74 mm |
| Width | 25.4 mm | 53.3 mm |
| Thickness | 9.6 mm | 8.6 mm |
| Materials | Polycarbonate | Plastic |
| Water / dust resistance | No | No |
| Several colours available | No | Yes |
| Warranty (months) | 24 | 24 |
| Assembled in | Switzerland | France |
| DIY build possible | No | No |
| Apps | ||
| Official apps | Windows, macOS, Linux, Android | Windows, macOS, Linux, Android, iOS |
| Desktop app | Yes | Yes |
| Mobile app | Yes | Yes |
| Works with wallet apps | Bitcoin Safe, Wasabi, Nunchuk, Electrum, Sparrow, Specter Desktop, Blockstream Green, BlueWallet, Bitcoin Keeper, Liana | Bitcoin Safe, Theya, Wasabi, Nunchuk, Electrum, Sparrow, Specter Desktop, Blockstream Green, BlueWallet, Bitcoin Keeper, Liana |
| Compatible third-party wallets | 10 | 11 |
| Other features | ||
| FIDO2 / U2F security key | Yes | Yes |
| Password manager | No | Yes |
